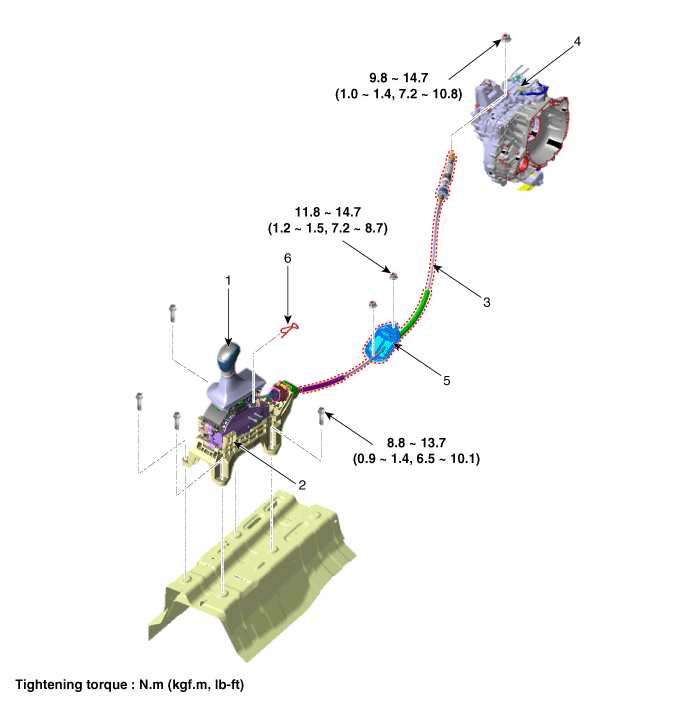

Components Location

1. Shift lever knob & boots
2. Shift lever assembly
3. Shift cable

4. Manual control lever
5. shift cable retainer
6. Snap pin

Shift Lever Repair procedures

Removal 1. Pull the knob (A) in the direction of "F" and remove the knob. 2. Disconnect the connector (B) from the shift lever. 3. Disconnect the fixing clip (A) of wiring. 4. Discon ...

Shift Cable Repair procedures

Removal 1. Air cleaner assembly and air duct. (Refer to Engine Mechanical System - "Air cleaner") 2. Battery and battery tray. (Refer to Engine Electrical System - "Battery") 3. Remove ...
