Hyundai Elantra: Autonomous Emergency Braking(AEB) System / Schematic Diagrams

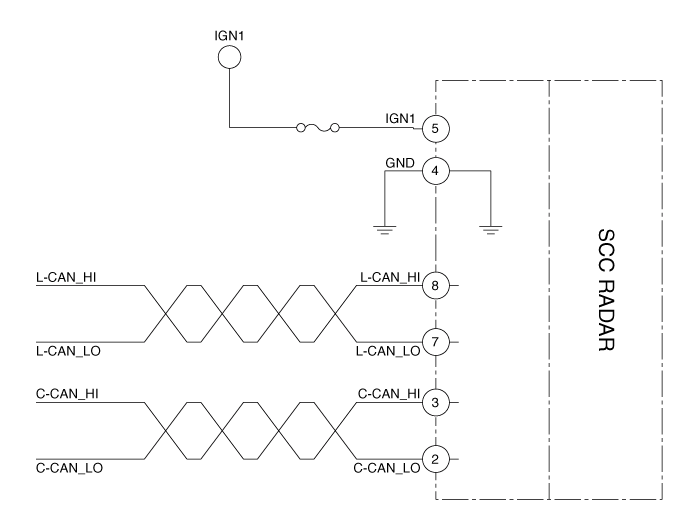

| Schematic diagram |

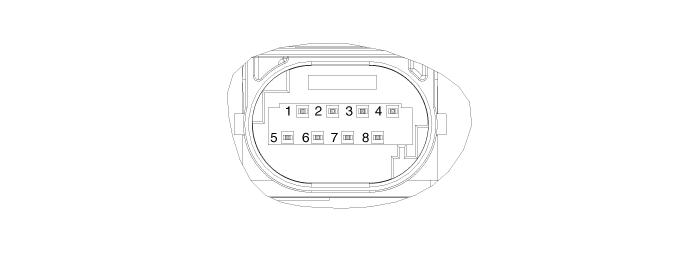

| Terminal Function |
| NO. | Function |
| 1 | - |
| 2 | C-CAN Low |
| 3 | C-CAN High |
| 4 | GND |
| 5 | IGN_1 |
| 6 | - |
| 7 | L-CAN Low |
| 8 | L-CAN High |
