Hyundai Elantra: Lighting System / Rheostat Components and Components Location

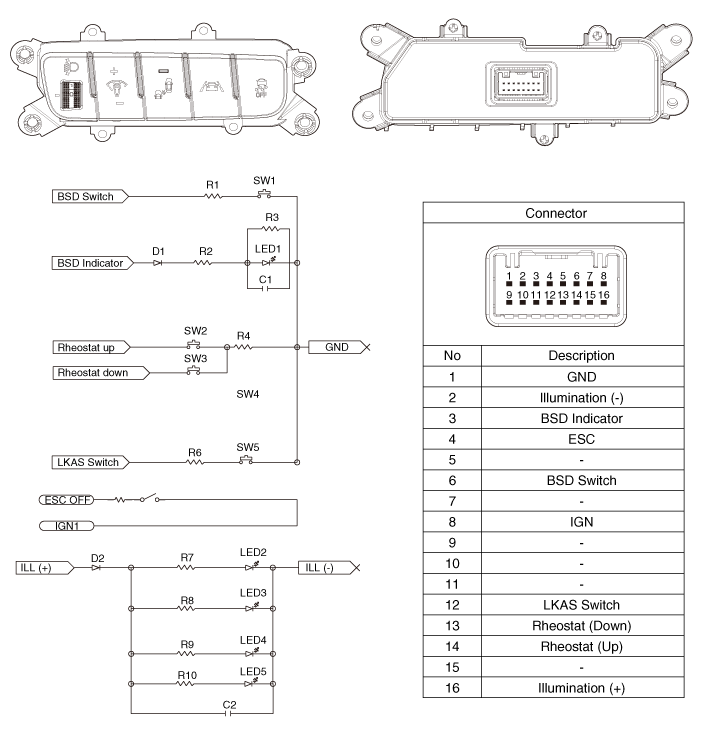

Components

Hazard Lamp Switch Repair procedures
Inspection 1. Check for continuity between terminals. If the continuity is not as specified, replace the hazard lamp switch. Manual (Auto) Removal     • Wrap the protec ...

Rheostat Repair procedures
Inspection 1. Disconnect the negative (-) battery terminal. 2. Remove the crash pad lower panel. (Refer to Body - "Crash Pad Lower Panel") 3. Disconnect the rheostat switch connector (A). ...

Other information:

Hyundai Elantra AD (2016-2020) Service Manual: Crankshaft Position Sensor (CKPS) Repair procedures
Inspection 1. Check signal waveform of CKPS and CMPS using a scan tool. Specification : Refer to "Waveform" Removal 1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2. Disconnect the crankshaft position sensor connector (A) and remove the sensor af ...

Hyundai Elantra AD (2016-2020) Service Manual: Injector Description and Operation
Description Based on information from various sensors, the ECM can calculate the fuel amount to be injected. The fuel injector is a solenoid-operated valve and the fuel injection amount is controlled by length of injection time. The ECM controls each injector by grounding the control circ ...
