1. Check that the shift lever is in P (Park) while the ignition switch is in the ON position.
2. Press the desired memory button (1 or 2). The system will beep once, and then the driver’s seat position, side view mirror position and instrument panel illumination intensity will automatically adjust to the stored positions.
3.

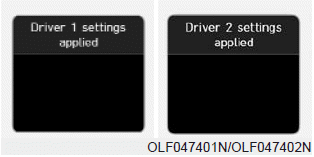

"Driver 1(or 2) settings is applied" will appear on the LCD display.
NOTICE
Hyundai Elantra AD (2016-2020) Service Manual: Schematic Diagrams
Schematic Diagrams
Termianal function
Wire No.DesignationCurrent maxmin13Ground for recirculation pump39 A10 A1Voltage supply for pump motor39 A10 A25Voltage supply for solenoid valves15 A2 A38Ground for solenoid valves and ECU15 A2 A22Signal wheel speed sensor FL16.8 mA5.9 mA33Voltage supply ...
Hyundai Elantra AD (2016-2020) Service Manual: Rear Wheel Speed Sensor Repair procedures
Removal
1.
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
2.
Remove the rear wheel and tire (A) from front hub .
Tightening torque:
107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.0 lb-ft)
•
Be careful not to dama ...
