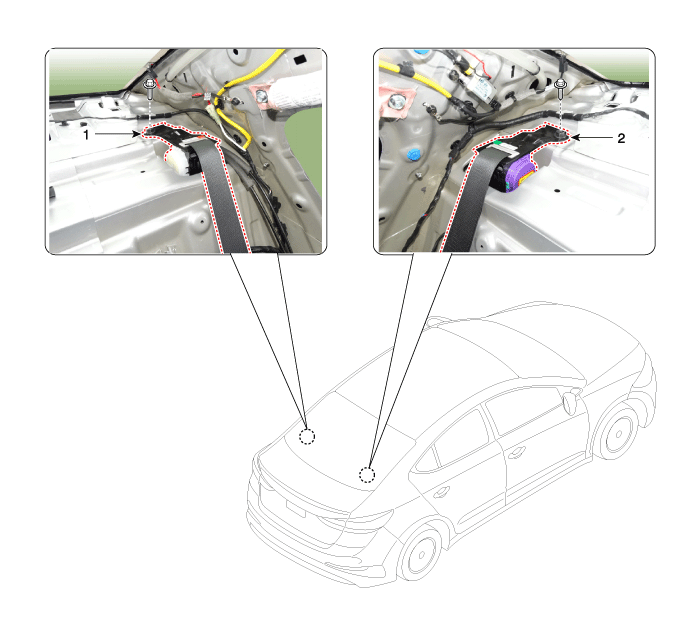

Component Location

1. Rear seat belt retractor [LH]
2. Rear seat belt retractor [RH]

Components and Components Location
Components 1. Rear seat belt retractor [RH]2. Rear center seat belt retractor 3. Center seat belt 4. Rear seat belt buckle [RH]5. Rear seat belt buckle [LH]6. Rear center seat belt buckle ...

Rear Seat Belt Retractor Repair procedures
Replacement     • When installing the belt, make sure not to damage the retractor. 1. Remove the package tray trim. (Refer to Interior Trim - "Package Tray Trim") ...
