Hyundai Elantra AD (2016-2020) Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Latch Components and Components Location

Component Location

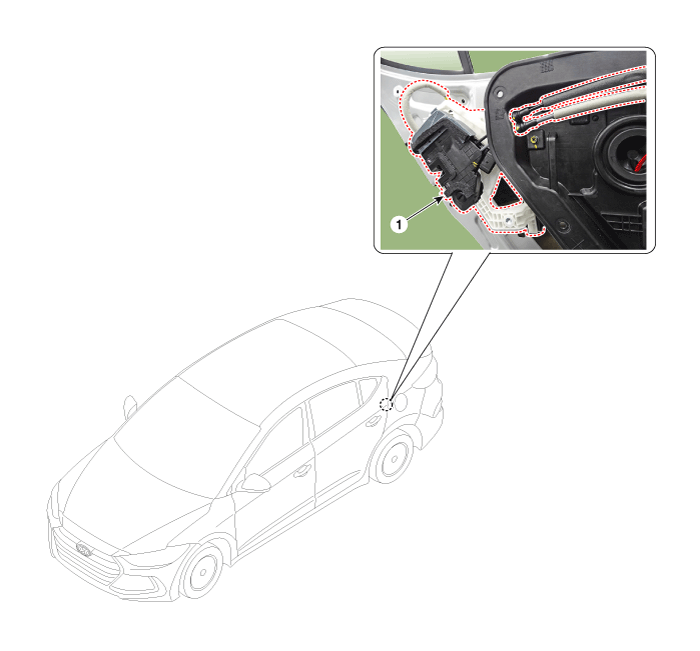

1. Rear door latch


Rear Door Outside Handle Repair procedures
Replacement 1. Remove the plug hole (B). 2. After loosening the mounting bolt, remove the front door lock (A). Tightening torque : 7.8 ~ 10.8 N.m (0.8 ~ 1.1 kgf.m, 5.8 ~ 8.0 lb-ft) 3. ...

Rear Door Latch Repair procedures
Replacement 1. Remove the rear door module. (Refer to Rear Door - "Rear Door Module") 2. Remove the rear door inside handle cage (A). 3. Disconnect the rear door latch connector (A). 4 ...
