Hyundai Elantra: Light Bulbs / Rear Combination Light Bulb Replacement. Inside lamp

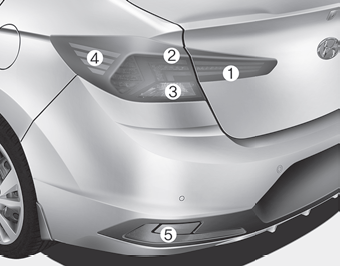

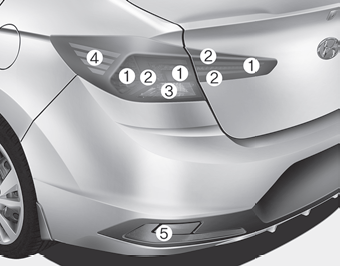

â–  Type A

Type A

(1) Tail lamp
(2) Stop/Tail lamp
(3) Turn signal lamp
(4) Side marker
(5) Back-up lamp

â–  Type B

Type B

(1) Stop (LED)
(2) Tail lamp (LED)
(3) Turn signal lamp
(4) Side marker (LED)
(5) Back-up lamp

Outside lamp

1. Open the trunk lid.

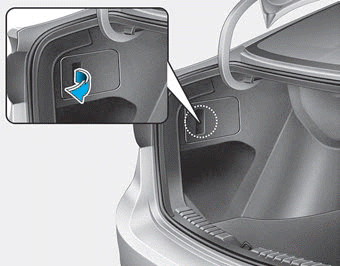

2. Remove the service cover by pulling out the service cover.

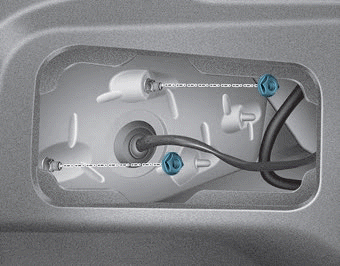

3. Loosen the assembly retaining nuts.

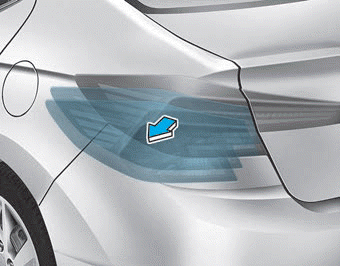

4. Remove the rear combination light assembly from the body of the vehicle.

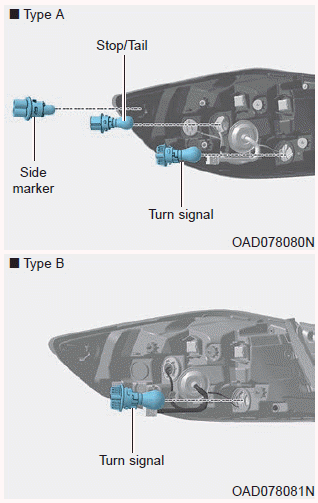

Turn signal light (Type A/Type B)

5. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

6. Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket.

7. Insert a new bulb by inserting it into the socket and rotating it until it locks into place.

8. Install the socket in the assembly by aligning the tabs on the socket with the slots in the assembly. Push the socket into the assembly and turn the socket clockwise.

Stop/Tail light and Side marker (Type A)

5. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

6. Remove the bulb by pulling it out.

7. Inset a new bulb by insetring it into the socket.

8. Install the socket in the assembly by aligning the tabs on the socket with the slots in the assembly. Push the socket into the assembly and turn the socket clockwise.

Stop/Tail light and Side marker (Type B)

Your vehicle is equipped with LED lamps. LED lamps do not have replaceable bulbs. If the LED lamp does not operate, have the vehicle checked by an authorized HYUNDAI dealer.

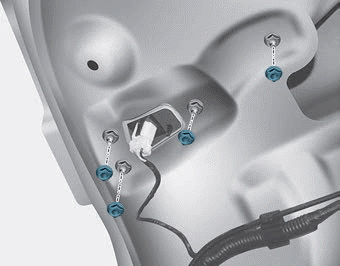

Inside lamp

Tail light (Type A)

1. Open the trunk.

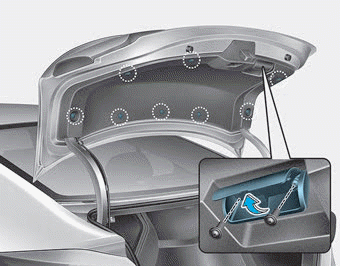

2. Loosen the retaining screw of the trunk lid cover and then remove the cover.

3. Disconnect the connector and then remove the nuts by turning the nuts counter clockwise.

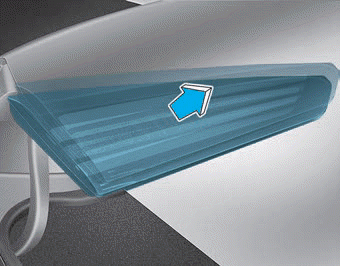

4. Take the light assembly out.

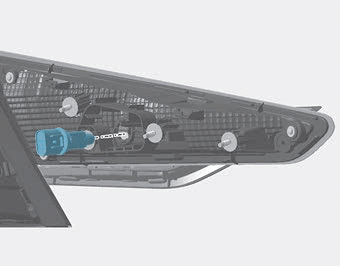

5. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

6. Remove the bulb by pulling it out.

7. Insert a new bulb by inserting it into the socket.

8. Install the light assembly to the trunk.

9. Reinstall the nuts and connector and then the trunk lid cover by pushing in the screw.

Stop/Tail light (Type B)

Your vehicle is equipped with LED lamps. LED lamps do not have replaceable bulbs. If the LED lamp does not operate, have the vehicle checked by an authorized HYUNDAI dealer.

Backup lamp (Type A/Type B)

If the light bulb does not operate, have the vehicle checked by an authorized HYUNDAI dealer.
