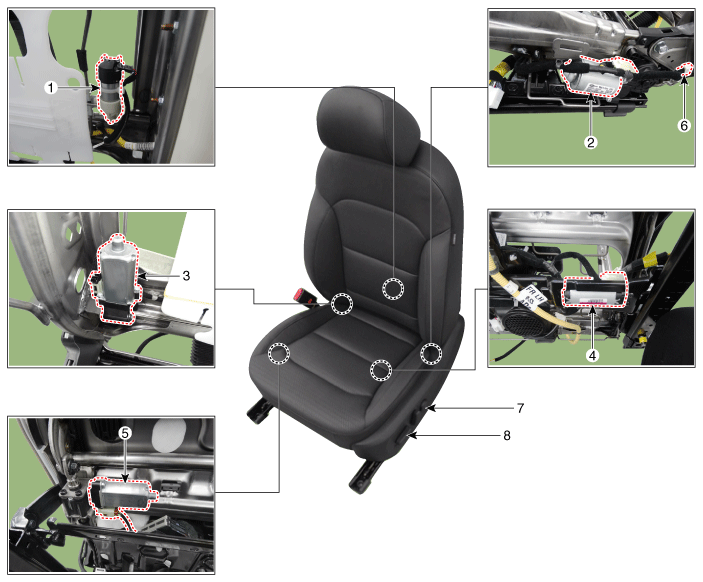

Component Location

1. Lumber support motor (Horizontal)
2. Rear height motor
3. Reclining motor
4. Slide motor
5. Front height motor
6. Reclining limit switch
7. Lumber support switch
8. Seat switch
