Hyundai Elantra AD (2016-2020) Service Manual / Body (Interior and Exterior) / Rear Seat / Components and Components Location
| Components |

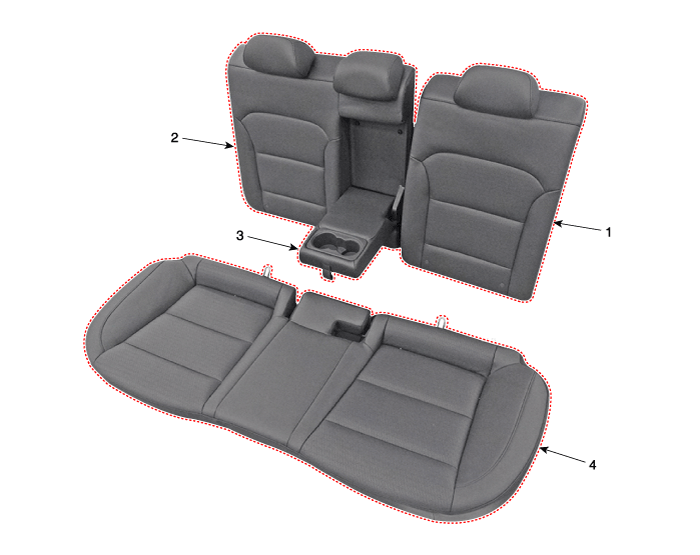

| 1. Rear seat back assembly [LH] 2. Rear seat back assembly [RH] | 3. Rear back armrest 4. Rear seat cushion assembly |
Rear Seat
...
Rear Seat Assembly Components and Components Location
Component Location
1. Rear seat cushion assembly2. Rear seat back assembly
...
