Hyundai Elantra: Seat Electrical / Power Seat Control Switch Schematic Diagrams

Hyundai Elantra AD (2016-2020) Service Manual / Body Electrical System / Seat Electrical / Power Seat Control Switch Schematic Diagrams

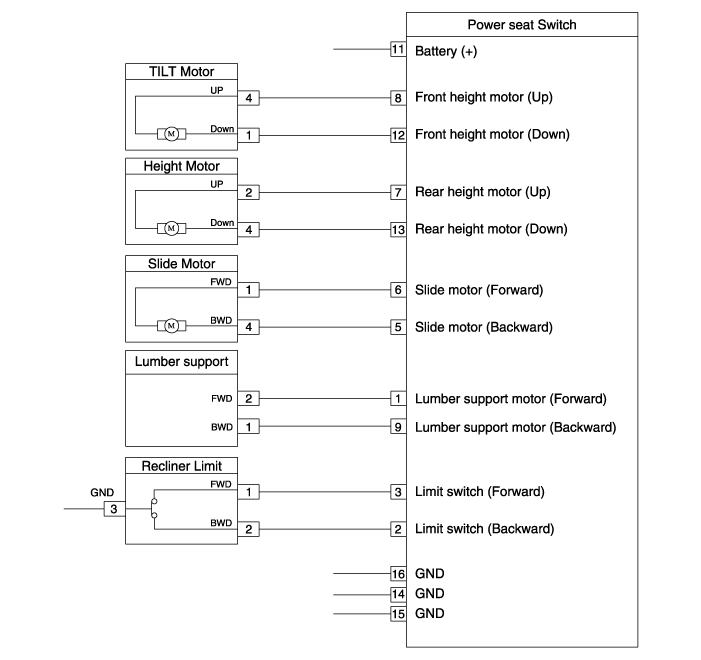

Circuit Diagram
