Hyundai Elantra: Automatic Transaxle Control System / Output Speed Sensor Schematic Diagrams

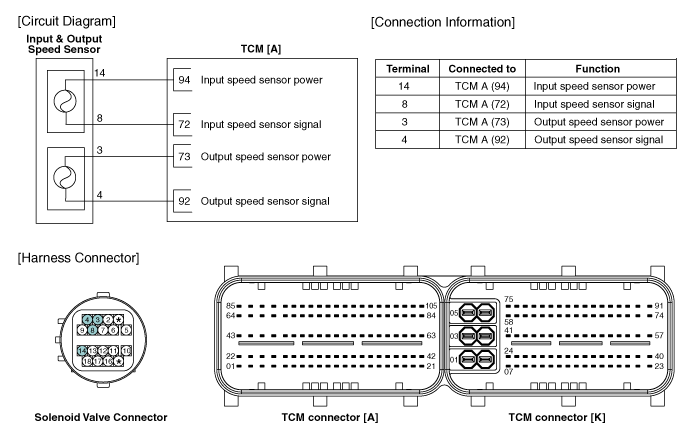

Circuit Diagram

Output Speed Sensor Specifications
Specifications ? Type: Hall effect sensor ? Specifications ItemsSpecificationsOperation condition [°C(°F)](-40 ~ 150) -40 ~ 302Output voltage(V)High1.18 ~ 1.68Low0.59 ~ 0.84 ...

Output Speed Sensor Repair procedures
Inspection 1. Using the GDS, check the input/output speed sensor waveforms. A. Turn OFF the ignition switch. B. Connect the GDS to the Data Link Connector(DLC) on the lower crash pad. C. ...
