Description

•	The oil pump is built-in as a single unit with the 26 Brake chamber.

•	Rotation of the pump builds the hydraulic pressure needed for the lubrication of the various parts of the transaxle and operation of the clutch and brakes.

•	The oil also circulates through the torque converter and the cooler.

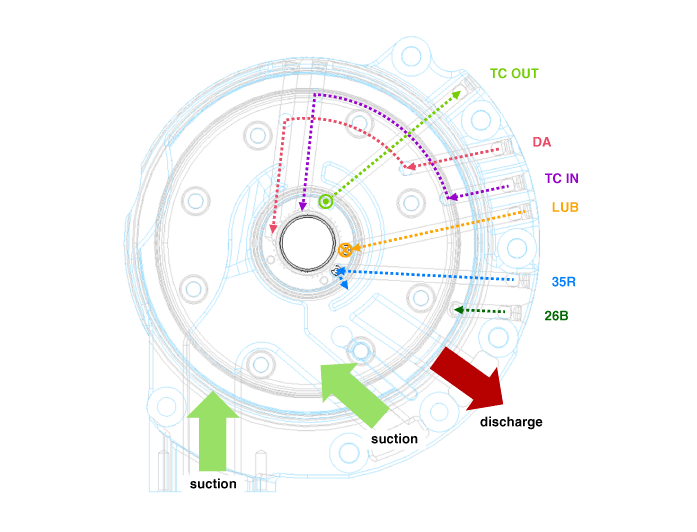

Operation flow of the mechanical oil pump

Components and Components Location

Components Location 1. Automatic transaxle2. Oil filter3. Mechanical oil pump4. Converter housing5. Torque converter ...

Oil Pump Components and Components Location

Components 1. Housing - Oil pump2. Cover - Oil pump3. Gear - Oil pump drive4. Gear - Oil pump driven5. Shaft - Reaction6. Oil - Seal7. Sleeve8. Bearing - Housing9. Cap - Sealing10. Needle roller ...
