Hyundai Elantra: Hydraulic System / Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Automatic Transaxle System / Hydraulic System / Components and Components Location

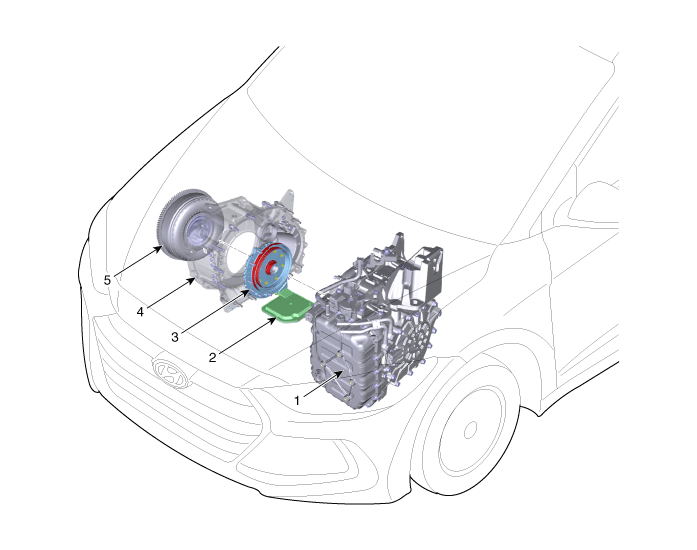

Components Location

1. Automatic transaxle
2. Oil filter
3. Mechanical oil pump

4. Converter housing
5. Torque converter

Description and Operation

Description • The oil pump is powered by the engine. ATF passes through the oil filter and gets distributed along the oil channels. • The oil becomes highly pressurized as it exits th ...

Oil Pump Description and Operation

Description • The oil pump is built-in as a single unit with the 26 Brake chamber. • Rotation of the pump builds the hydraulic pressure needed for the lubrication of the various par ...
