Hyundai Elantra: Hydraulic System / Oil Pump Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Automatic Transaxle System / Hydraulic System / Oil Pump Components and Components Location

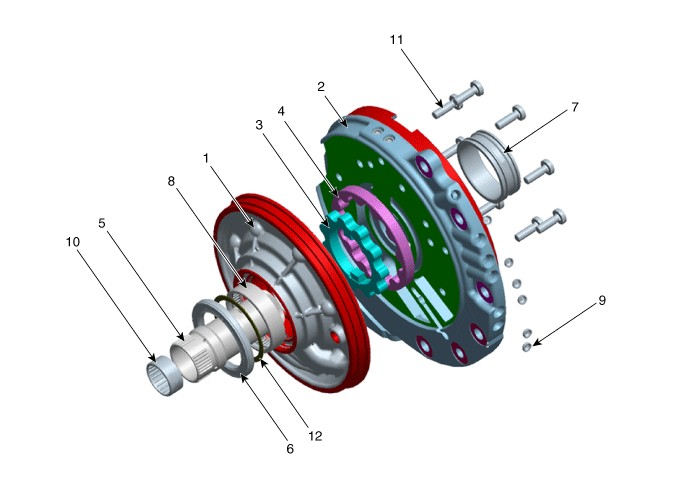

Components

1. Housing - Oil pump
2. Cover - Oil pump
3. Gear - Oil pump drive
4. Gear - Oil pump driven
5. Shaft - Reaction
6. Oil - Seal

7. Sleeve
8. Bearing - Housing
9. Cap - Sealing
10. Needle roller bearing
11. Bolt
12. Snap ring - Housing
