Hyundai Elantra: Manual Heating and Air Conditioning / OFF mode

Hyundai Elantra. OFF mode

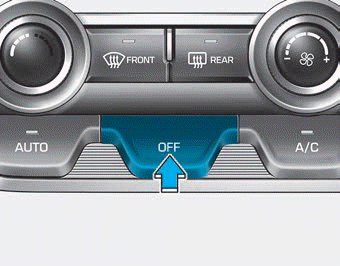

Push the OFF button of the front to turn off the air climate control system. You can still operate the mode and air intake buttons as long as the ignition switch is in the ON position.

Fan speed control / Air conditioning
Fan speed control The fan speed can be set to the desired speed by turning the fan speed control knob. The higher the fan speed is, the more air is delivered. Pressing the OFF button turns off ...

System Operation
Ventilation 1. Select the Face Level mode. 2. Set the air intake control to the outside (fresh) air position. 3. Set the temperature control to the desired position. 4. Set the fan speed control ...

Other information:

Hyundai Elantra AD (2016-2020) Service Manual: Rain Sensor Description and Operation
Description Integrated Rain Sensor Integrated rain sensor (A) controls three systems: front wiper, auto-light, and central air conditioner. 1. Wiper Control System When "AUTO" switch signal is received from the multi-function switch on the right, the integrated rain sensor detects the amoun ...

Hyundai Elantra AD (2016-2020) Service Manual: Transaxle Control Module (TCM) Schematic Diagrams
TCM Connector and Terminal Function TCM Terminal Function Connector [A] Connector [K] PinDescriptionPinDescriptionA1Overdrive clutch control solenoid valve(OD/C_VFS)K8FLEXRAY COMM. Signal HIGHA5Torque converter control solenoid(T/CON_VFS)K25FLEXRAY COMM. Signal LOWA6Pressure control solenoid ( ...
