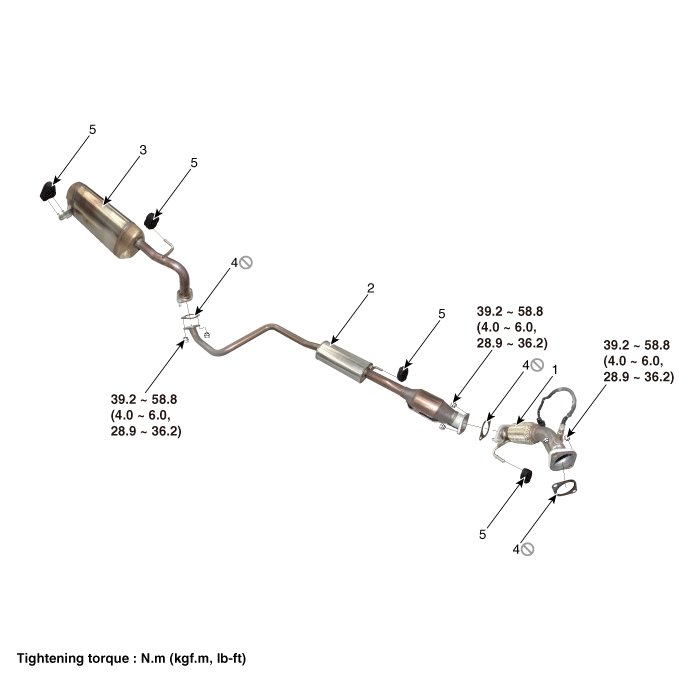

Components

1. Front muffler
2. Catalytic converter & center muffler assembly
3. Main muffler

4. Gasket
5. Hanger

Exhaust Manifold Repair procedures

Removal and Installation 1. Remove the engine cover. (Refer to Engine And Transaxle Assembly - “Engine Cover”) 2. Disconnect the battery negative terminal. 3. Disconnect the oxygen se ...

Muffler Repair procedures

Removal and Installation Front Muffler 1. Disconnect the battery negative terminal. 2. Disconnect the oxygen sensor connector (A). 3. Detach the rubber hanger (A) from the front muffler. ...
