Hyundai Elantra: Ignition System / Ignition Coil Repair procedures

Hyundai Elantra AD (2016-2020) Service Manual / Engine Electrical System / Ignition System / Ignition Coil Repair procedures

Removal

1.	Turn ignition switch OFF and disconnect the negative (-) battery cable.

2.	Remove the engine cover.

Disconnect the ignition coil connector (A).

•	When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).

4.	Remove the ignition coil (A).

Installation

Install in the reverse order of removal.

Ignition coil installation bolts:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 Ib-ft)

Inspection

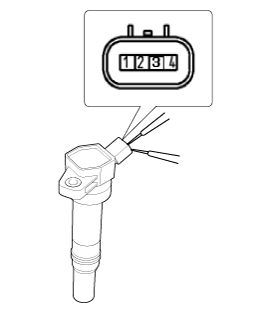

Measure the primary coil resistance between terminals 1 and 2.

Standard value : 0.61 ? ± 15%
