Hyundai Elantra: Ignition System / Ignition Coil Schematic Diagrams

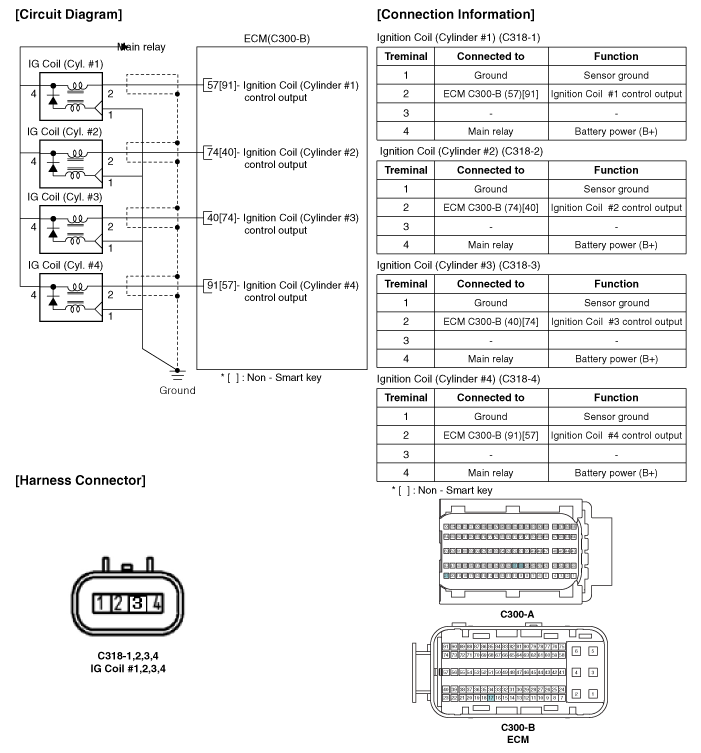

Circuit Diagram

Ignition Coil Specifications
Specification ItemSpecification Primary Coil Resistance (?)0.61 ± 15% [20°C (68°F)]Secondary Coil Resistance (k?)7.5 ± 15% [20°C (68°F)] ...

Ignition Coil Repair procedures
Removal 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the engine cover. 3. Disconnect the ignition coil connector (A).     • ...
