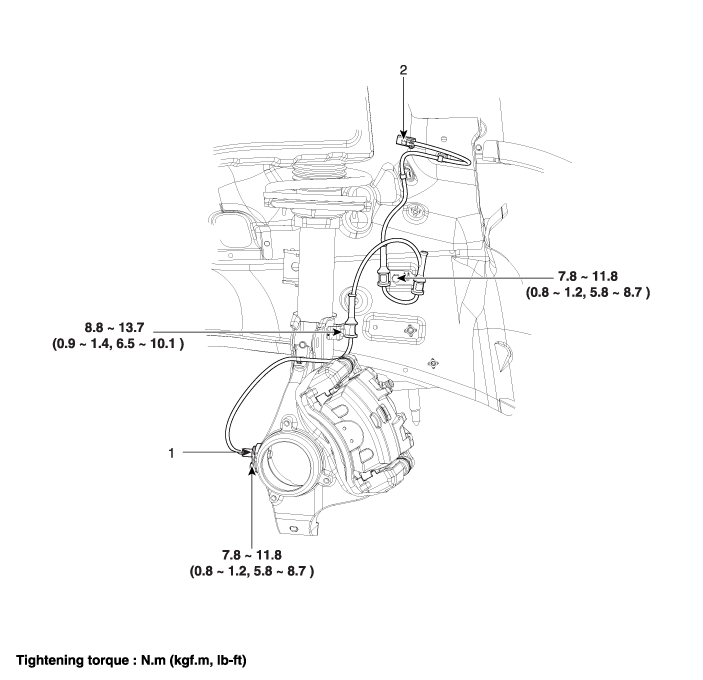

Components

1. Front wheel speed sensor
2. Front wheel speed sensor connector

ESC OFF Switch Repair procedures
Removal 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the crash pad lower panel. (Refer to Body - "Crash Pad") 3. Remove the side crash pad switch. ...

Front Wheel Speed Sensor Repair procedures
Removal 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the front wheel and tire (A) from front hub . Tightening torque: 107.9 ~ 12 ...
