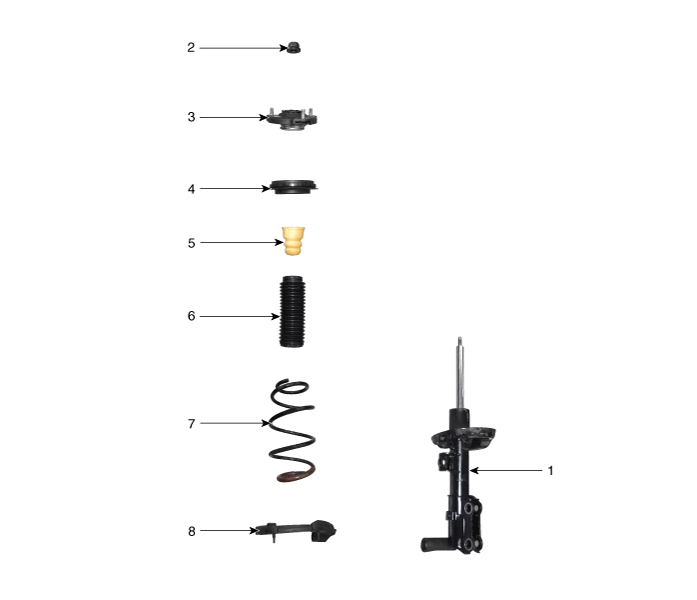

Components

1. Strut assembly
2. Lock nut
3. Insulator
4. Strut bearing & Spring upper pad
5. Bumper rubber
6. Dust cover
7. Coli spring
8. Spring lower pad

Components and Components Location
Components Location 1. Front strut assembly2. Drive shaft3. Steering gearbox4. Lower arm5. Sub frame6. Stabilizer bar7. Front knuckle assembly ...

Front Strut Assembly Repair procedures
Removal 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the front wheel and tire (A) from front hub. Tightening torque : 107.9 ~ 12 ...
