Hyundai Elantra: Front Axle Assembly / Front Hub / Knuckle Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Driveshaft and axle / Front Axle Assembly / Front Hub / Knuckle Components and Components Location

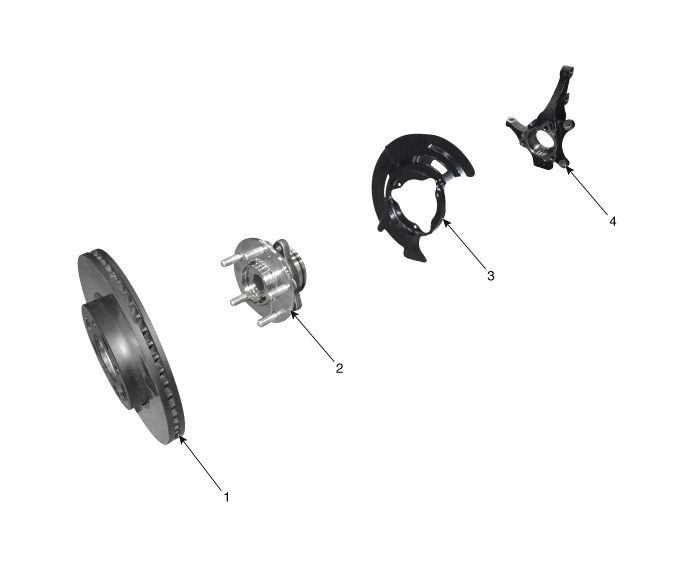

Components

1. Brake disc
2. Hub bearing
3. Dust cover
4. Knuckle
