Hyundai Elantra: Front Door / Front Door Latch Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Body (Interior and Exterior) / Front Door / Front Door Latch Components and Components Location

Component Location

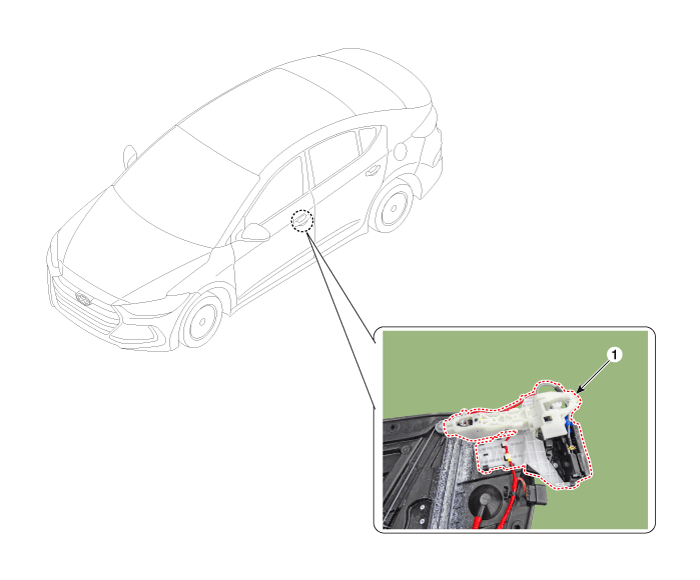

1. Front door latch


Front Door Side Weatherstrip Repair procedures
Replacement [Front door side weatherstrip] 1. Loosen the front door checker (B) mounting bolt. Tightening torque : 18.6 ~ 28.4 N.m (1.7 ~ 2.2 kgf.m,13.7 ~ 21.0 lb-ft) 2. Detach the cl ...

Front Door Latch Repair procedures
Replacement 1. Remove the front door module. (Refer to Front Door - "Front Door Module") 2. Remove the front door inside handle cage (A). 3. Disconnect the front door latch connector (A). ...
