Hyundai Elantra: Interior Trim / Door Step Trim Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Body (Interior and Exterior) / Interior Trim / Door Step Trim Components and Components Location

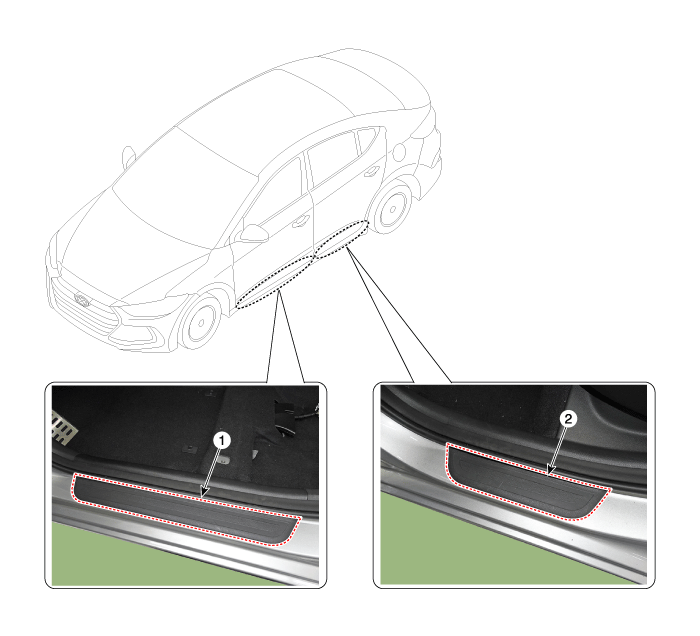

Component

1. Front door step trim
2. Rear door step trim
