Hyundai Elantra: Engine Control System / CVVT Oil Control Valve (OCV) Schematic Diagrams

Hyundai Elantra AD (2016-2020) Service Manual / Engine Control/Fuel System / Engine Control System / CVVT Oil Control Valve (OCV) Schematic Diagrams

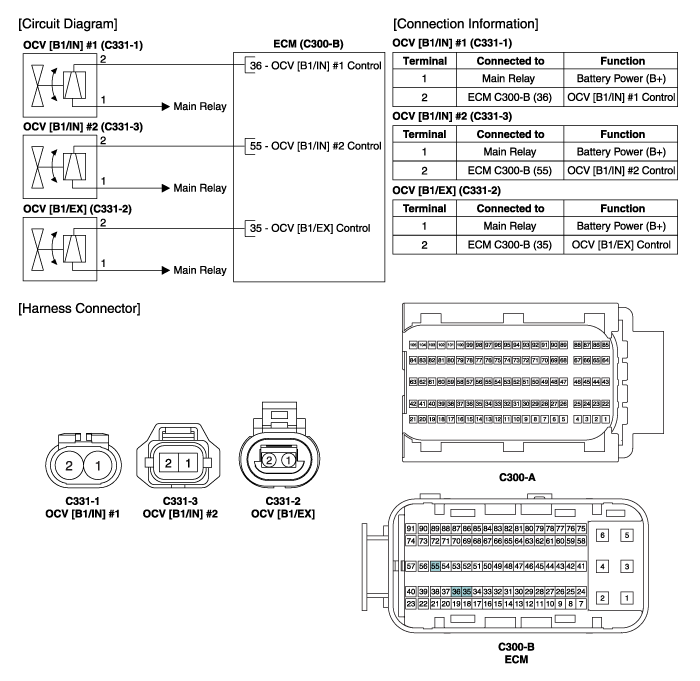

Circuit Diagram

CVVT Oil Control Valve (OCV) Specifications

Specification [Bank 1 / Intake] #1 , [Bank 1 / Exhaust] ItemSpecificationCoil Resistance (?)9.4 ~ 10.4 [20°C(68°F)] [Bank 1 / Intake] #2 ItemSpecificationCoil Resistance (?)10.8 ~ 12.8 [20° ...

CVVT Oil Control Valve (OCV) Repair procedures

Inspection 1. Turn the ignition switch OFF. 2. Disconnect the OCV connector. 3. Measure resistance between the OCV terminals 1 and 2. 4. Check that the resistance is within the specifi ...
