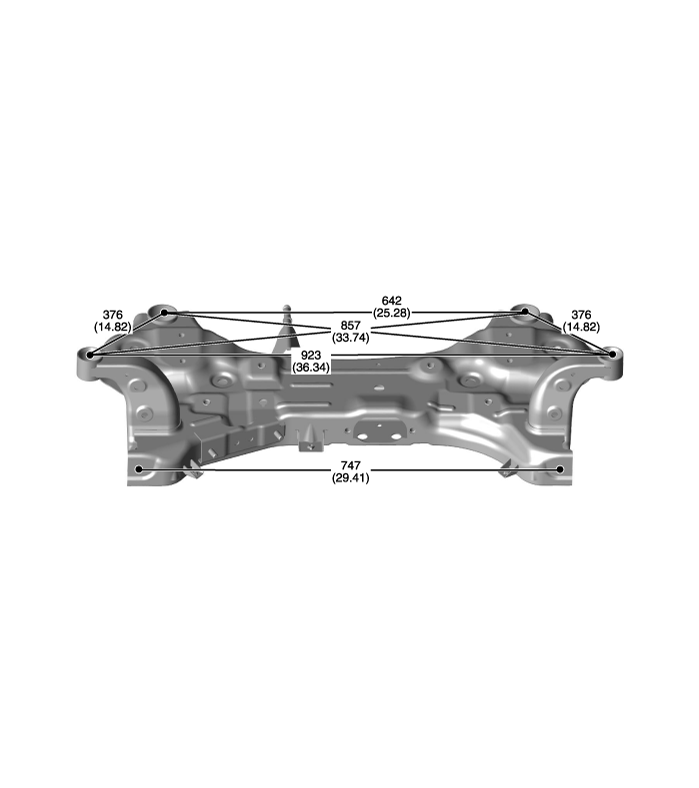

| Front Cross Member |
| * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |

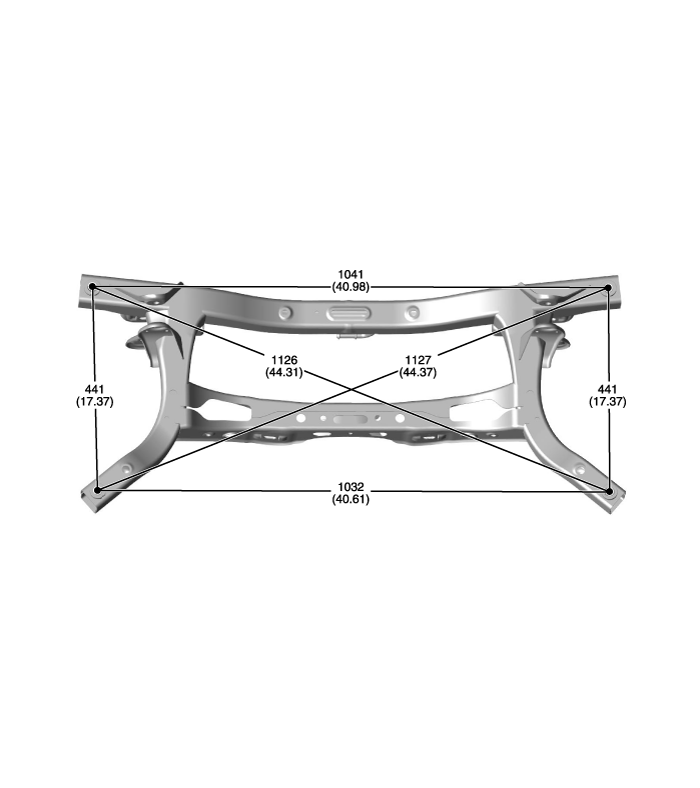

| Rear Cross Member |
| * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |
Fender
Components and Components Location
Component Location
1. Fender assembly
Repair procedures
Replacement
•
When removing the fender, wrap protective tape around a ...
