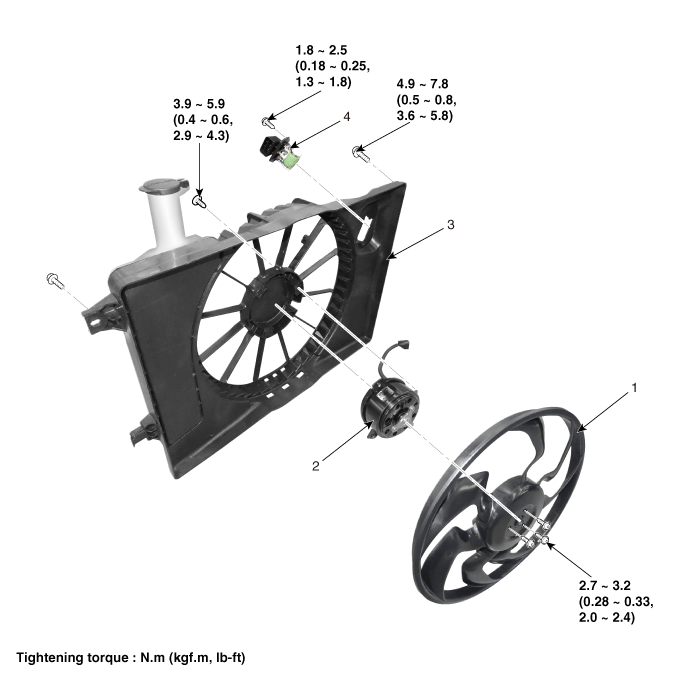

Components

1. Cooling fan
2. Fan motor
3. Cooling fan shroud
4. Cooling fan resistor

Coolant Repair procedures
Refilling And Bleeding     • Never remove the radiator cap when the engine is hot. Serious scalding could be caused by hot fluid under high pressure escaping from the rad ...

Cooling Fan Specifications
Specifications ItemSpecificationFan typePullerFan speed controlResistor (HI-LOW-OFF)Air flow rate [m?/h (yd?/h)]1,950 -8% min.Fan speed (rpm)1,650 ± 8%Current (A)11.7 + 10% max. ...
