Components Location

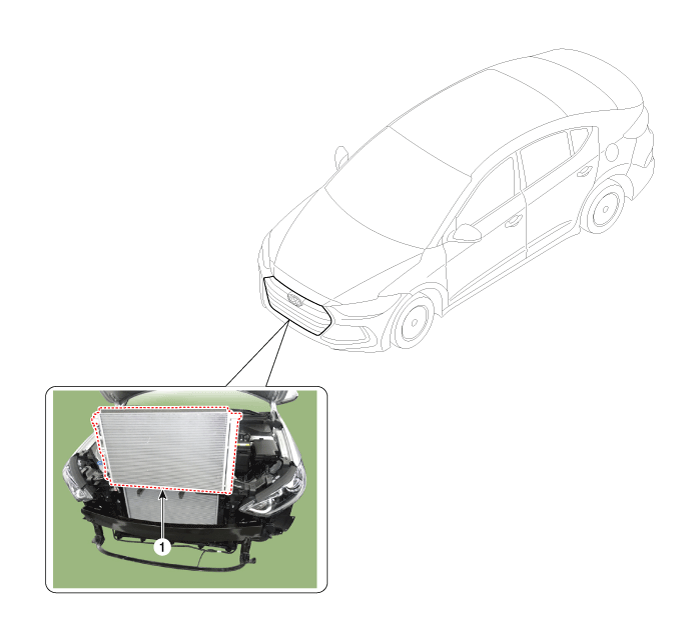

1. Condenser

Compressor Repair procedures

Removal Precautions for using the plastic pulley • Take care not to give physical impact to the plastic pulley. If exposed to the impact of dropping and collision, the ...

Condenser Repair procedures

Inspection 1. Check the condenser fins for clogging and damage. If clogged, clean them with water, and blow them with compressed air. If bent, gently bend them using a screwdriver or pliers. ...
