Hyundai Elantra: Air Conditioning System / Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Heating, Ventilation and Air Conditioning / Air Conditioning System / Components and Components Location

Component Location Index

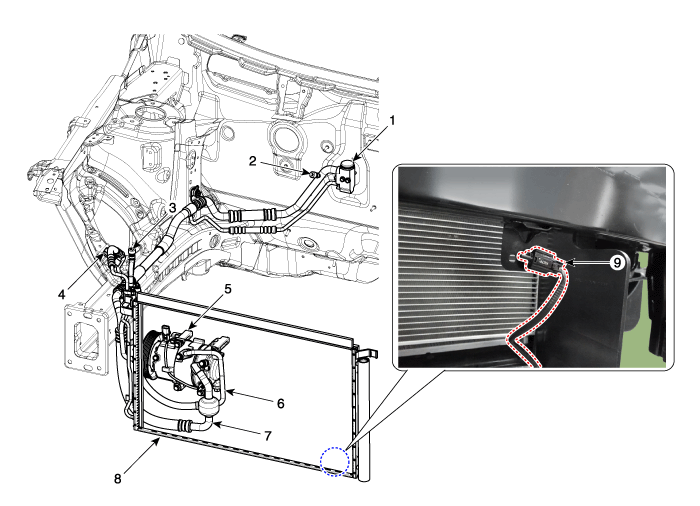

Engine Room

1. Expansion valve
2. Service port (Low pressure)
3. Service port (High pressure)
4. A/C Pressure transducer (APT)
5. Compressor

6. Discharge hose
7. Suction & Liquid tube assembly
8. Condenser
9. Ambient temperature sensor

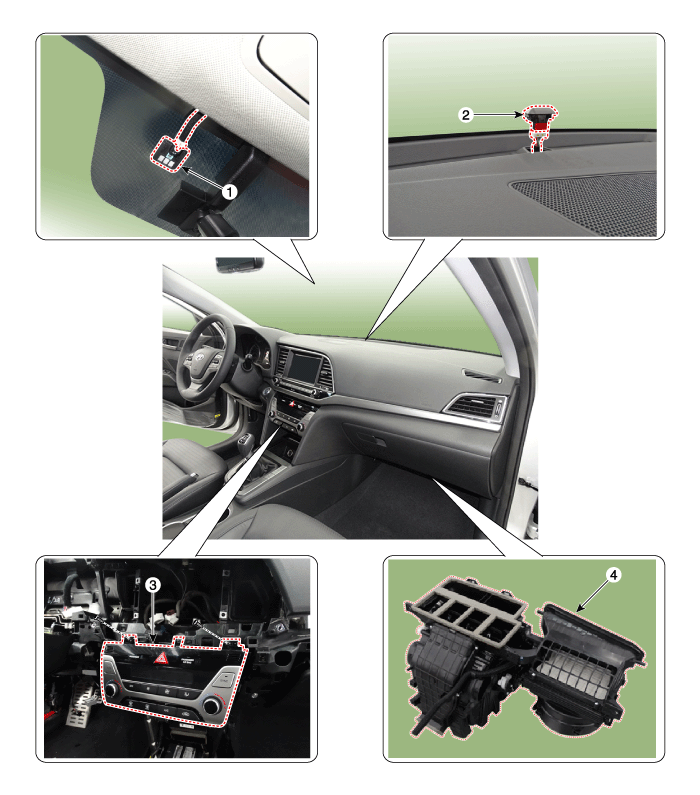

[Interior]

1. Auto defogging sensor
2. Photo sensor

3. Heater & A/C control unit
4. Heater & Blower unit
