Hyundai Elantra AD (2016-2020) Service Manual / Body Electrical System / Windshield Wiper/Washer / Components and Components Location

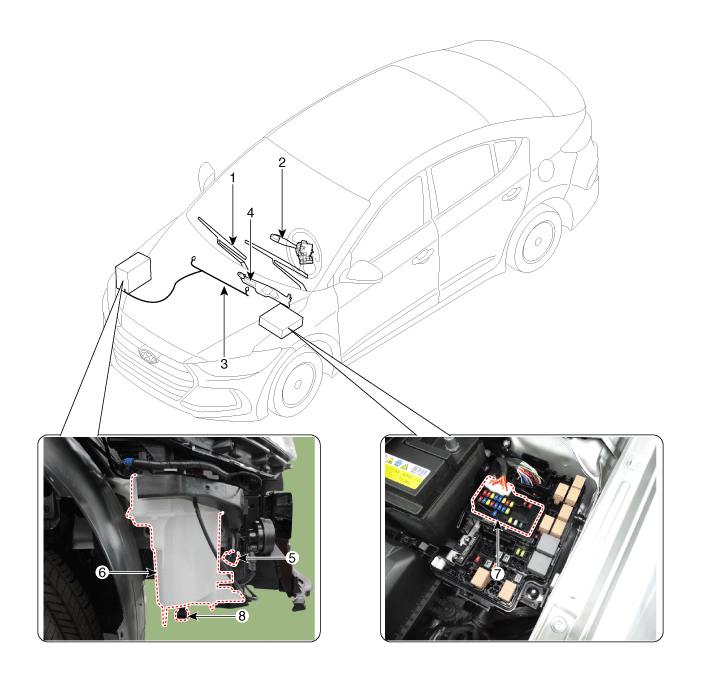

Component Location

1. Windshield wiper arm & blade
2. Wiper & washer switch
3. Windshield washer hose & nolzzle
4. Washer motor & linkage assembly

5. Washer motor
6. Washer reservoir
7. Wiper/Washer relay (Built - in PCB block)
8. Washer fluid level sensor

Windshield Wiper/Washer

...

Windshield Wiper-Washer Switch Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. If it is necessary to remove multifunction switch assembly, remove the steering wheel. (Steering System - "Steering Wheel") 3. ...
