Hyundai Elantra: Brake System / Rear Drum Brake Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Brake System / Brake System / Rear Drum Brake Components and Components Location

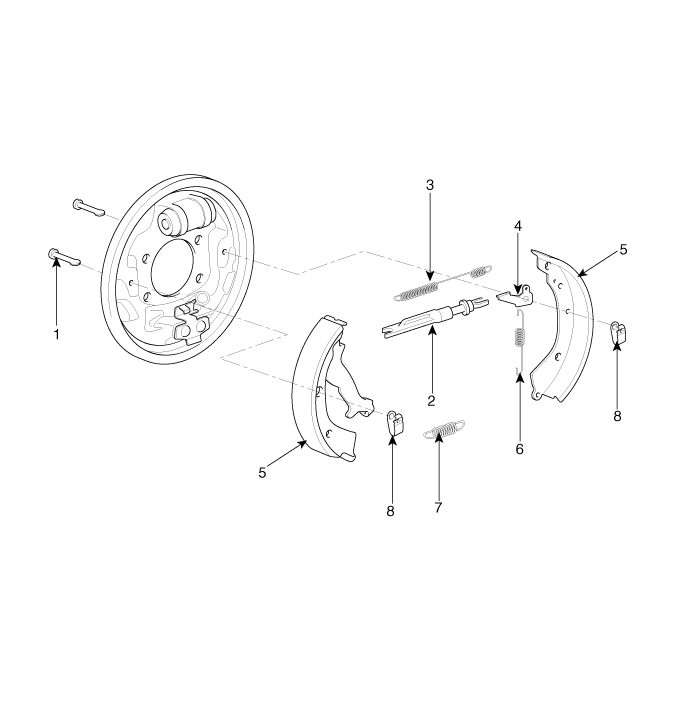

Components

1. Shoe hold down pin
2. Shoe adjuster
3. Upper return spring
4. Adjusting lever
5. Shoe
6. Adjusting spring
7. Lower return spring
8. Shoe hold spring
