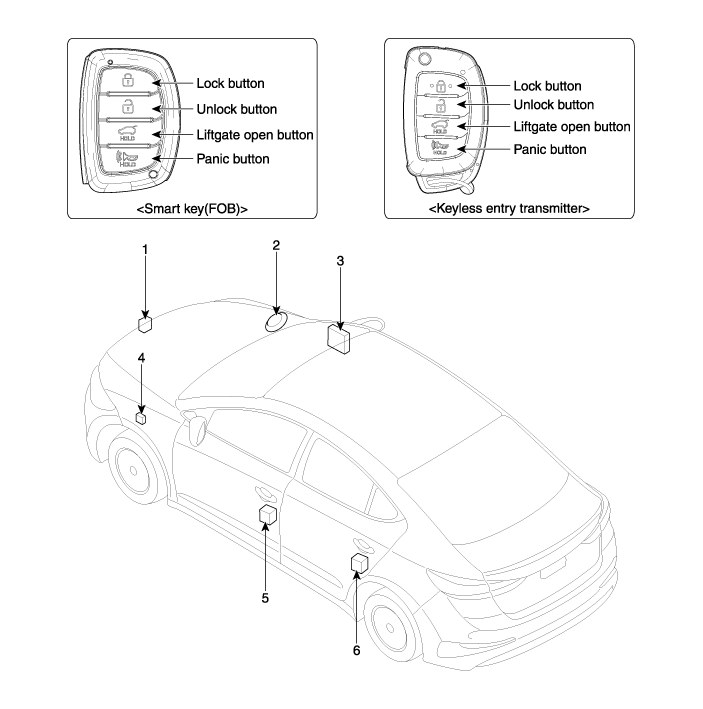

Component Location

1. Hood switch
2. Burglar horn
3. BCM

4. Door lock / unlock buzzer
5. Front door switch
6. Rear door switch

Specifications

Specification ItemSpecificationPower source3VOperating temperature-30°C ~ +75°C (-22°F ~ +167°F)RF ModulationFSKLF ModulationASKRF frequency433.92 MHzButton number4FunctionDoor lockDoor unloc ...

Description and Operation

Description Burglar Alarm State [B/A State] B/A StateDescriptionDISARM 1. In "DISARM" state, no vehicle start inhibition. So, when door, hood, or Tailgate is opened, there is no alarm sound ...
