Hyundai Elantra: Smart Key System / Components and Components Location
Hyundai Elantra AD (2016-2020) Service Manual / Body Electrical System / Smart Key System / Components and Components Location

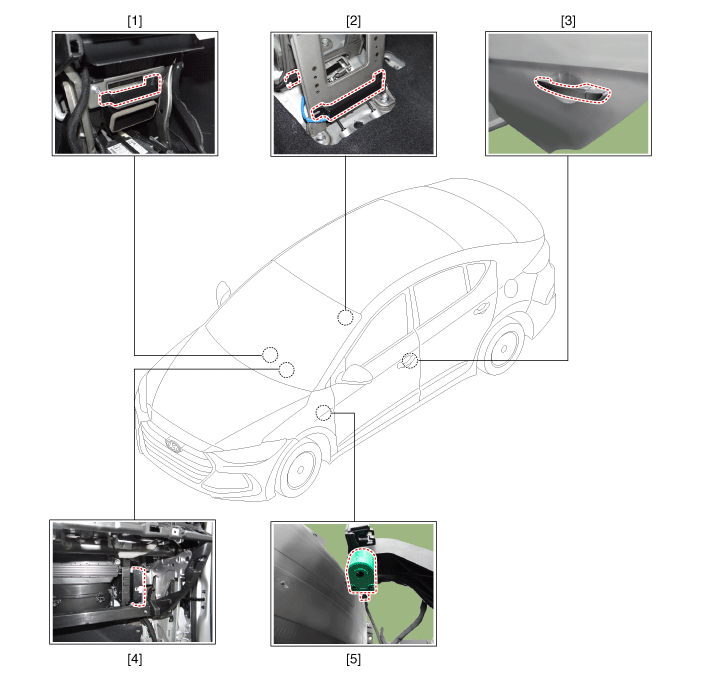

| Component Location (1) |
| 1. Interior antenna 1 2. Interior antenna 2 3. Door outside handle | 4. Smart key unit (SMK) 5. Buzzer |

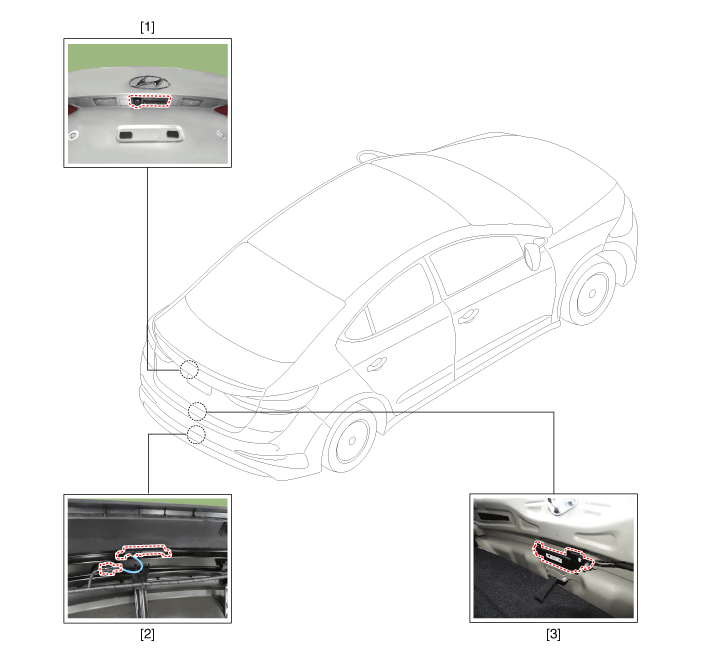

| Component Location (2) |
| 1. Trunk open switch 2. Bumper antenna | 3. Trunk atenna |
Specifications
Specifications
Smart Key Unit
ItemsSpecificationRated voltageDC 12VOperating voltageDC 9 ~ 16VOperating temperature-22°F ~ 167°F (-30°C ~ 75°C)LoadMax. 4mA (When welcome light function off)
...
Description and Operation
Description
The SMART KEY system is a system that allows the user to
access and operate a vehicle in a very convenient way. To access the
vehicle, no traditional key or remote control unit is n ...
