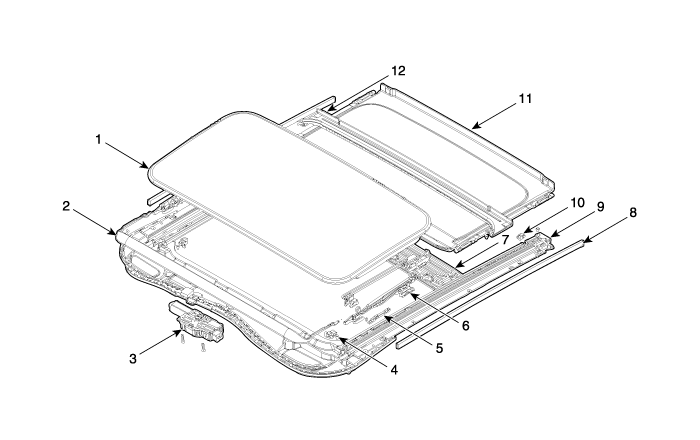

Components

1. Glass panel assembly
2. Deflector
3. Motor assembly
4. Spring base assembly
5. Plate rail assembly
6. Guide rail assembly

7. Drip link rail
8. Seal tape
9. Frame sub assembly
10. Stopper
11. Sunshade assembly
12. Drip rail assembly

Repair procedures

Adjustment Inspect Glass Alignment 1. Inspect the step height between the roof panel (A) and the glass weatherstrip (B) and then adjust it if necessary. Alignment adjustment Standard value ...
