Hyundai Elantra: Hydraulic System / Fluid Components and Components Location

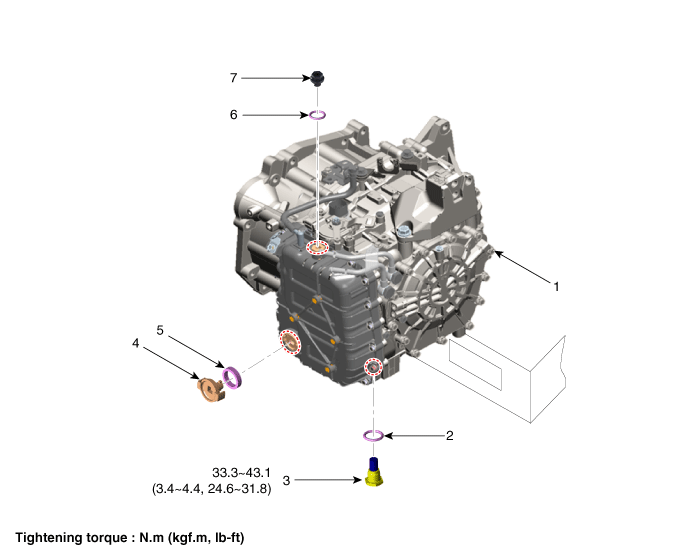

Components Location

1. Automatic transaxle
2. Drain plug gasket
3. Drain plug
4. ATF level check plug
5. ATF level check plug gasket
6. ATF injection plug O-Ring
7. ATF injection plug (Eyebolt)

Oil Pump Components and Components Location
Components 1. Housing - Oil pump2. Cover - Oil pump3. Gear - Oil pump drive4. Gear - Oil pump driven5. Shaft - Reaction6. Oil - Seal7. Sleeve8. Bearing - Housing9. Cap - Sealing10. Needle roller ...

Fluid Repair procedures
Service Adjustment Procedure ATF level Check     • A check of ATF level is not normally required during scheduled services. If an ATF leak is found, perform the ATF lev ...
