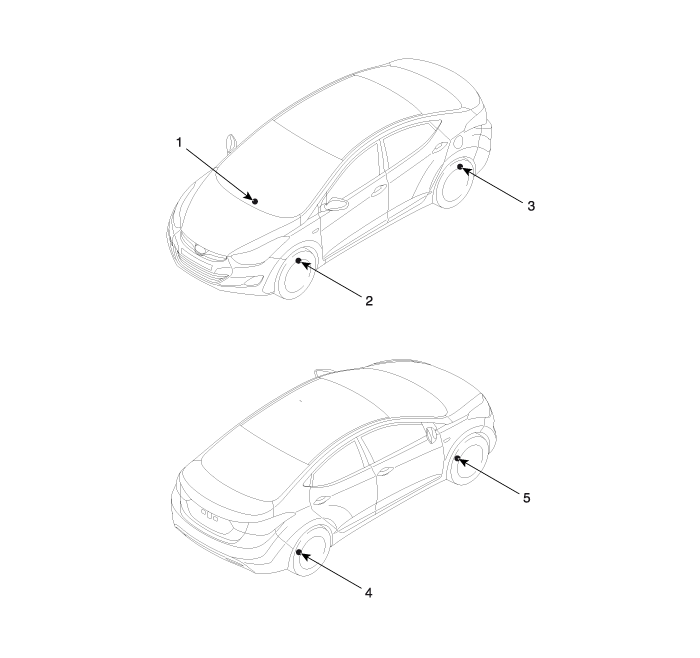

Components

1. Body control module(BCM)
2. TPMS sensor (FL)
3. TPMS sensor (RL)

4. TPMS sensor (FR)
5. TPMS sensor (RR)
