Hyundai Elantra: Rear Suspension System / Components and Components Location

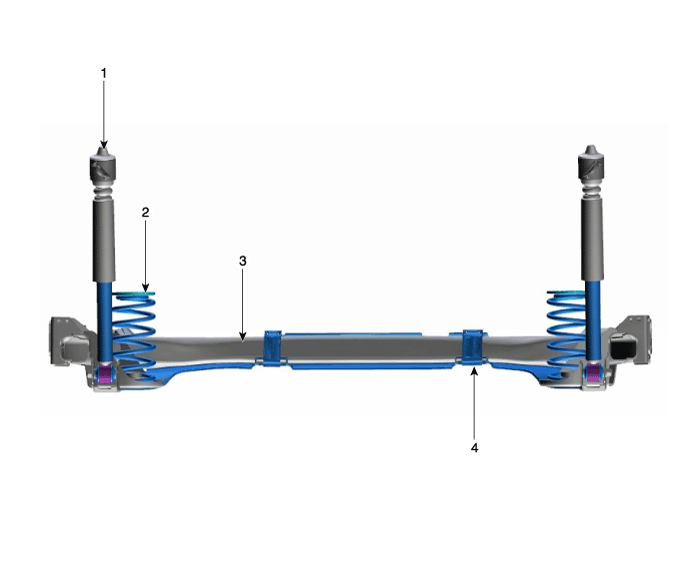

Components Location

1. Rear shock absorber
2. Coil spring
3. Torsion beam axle
4. Torsion beam axle cover

Rear Suspension System
...

Rear Shock Absorber Components and Components Location
Components 1. Shock absorber dust cap2. Lock nut3.Insulator assembly 4. Bumper rubber5. Dust cover6. Shock absorber ...
