Hyundai Elantra: Starting System / Starter Components and Components Location
Hyundai Elantra AD (2016-2020) Service Manual / Engine Electrical System / Starting System / Starter Components and Components Location

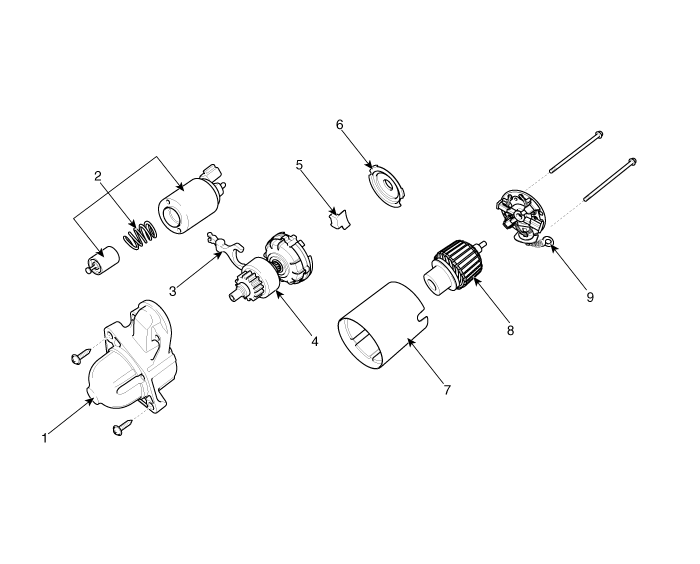

| Components |
| 1. Front bracket assembly 2. Magnet switch assembly 3. Lever 4. Reducer assembly 5. Lever stop | 6. Gasket sheet 7. Yoke assembly 8. Armature assembly 9. Brush holder assembly |
Starter Specifications
Specification
ItemSpecificationRated voltage12 V, 1.2 kWThe number of pinion teeth13Performance[No-load, 11.5 V]AmpereMax. 105 ASpeedMin. 2,950 rpm
...
Starter Schematic Diagrams
Circuit Diagram
...
