Hyundai Elantra: Tires/Wheels / Wheel Repair procedures

Hyundai Elantra AD (2016-2020) Service Manual / Suspension System / Tires/Wheels / Wheel Repair procedures

Hub nut tightening sequence

Tighten the hub nuts as follows.

Tightening torque :

107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.0 lb-ft)

•	When using an impact gun, final tightening torque should be checked using a torque wrench.

Run out inspection

1.	Jack up the vehicle.

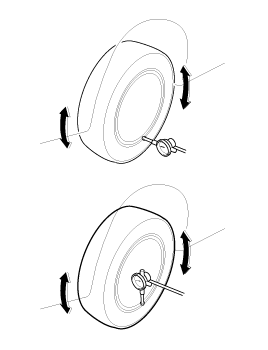

Measure the wheel Run-out by using a dial indicator as illustration below.

Run-out	Aluminum
Radial mm(in.)	Below 0.3(0.0118)
Lateral mm(in.)	Below 0.3(0.0118)

3.	If measured value exceeds the standard value, replace the wheel.
