Hyundai Elantra: Brake System / Brake Pedal Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Brake System / Brake System / Brake Pedal Components and Components Location

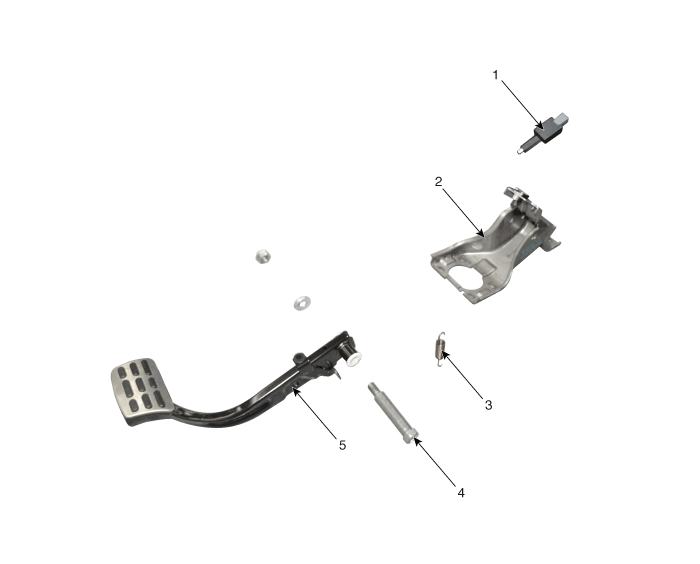

Components

1. Stop lamp switch
2. Brake pedal member assembly
3. Return spring
4. Bolt
5. Brake pedal arm assembly
