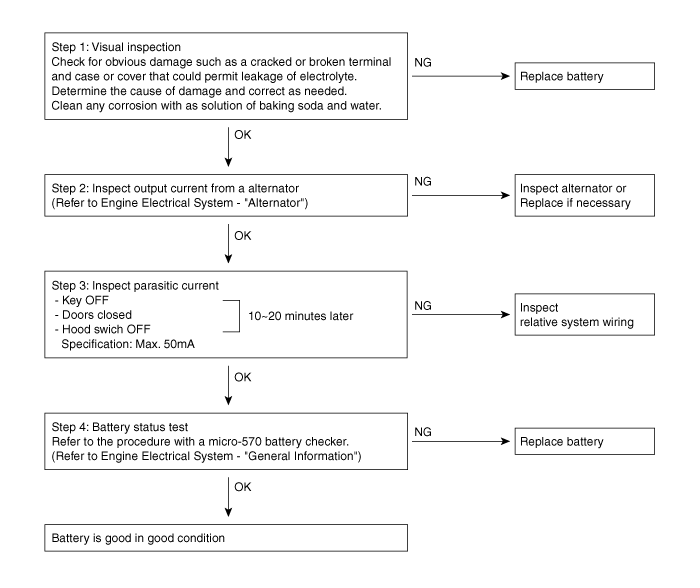

Hyundai Elantra: Charging System / Battery Troubleshooting

Troubleshooting

Battery Repair procedures
Removal Battery 1. Turn the ignition switch OFF. 2. Disconnect the battery (-) terminal (A). 3. Remove the battery (+) terminal (B). 4. Remove the battery mouting bracket (A). ...

Battery Sensor Description and Operation
Description Vehicles have many control units that use more electricity. These units control their own system based on information from diverse sensors. It is important to have a stable power s ...

Other information:

Hyundai Elantra AD (2016-2020) Service Manual: Smart Key Unit Components and Components Location
Components (1) NoConnector AConnector BConnector C1BAT (+)_SignalDriver's door antenna_GND-2BAT (+)_PowerDriver's door antenna_Power-3IGN 1--4IGN 2_Relay outputB-CAN (High)SSB LED (OFF)5IGN 1_Relay outputB-CAN (Low)SSB LED (IGN)6Assist door antenna_GNDWheel speed sensorSSB LED (ACC)7Interior an ...

Hyundai Elantra AD (2016-2020) Service Manual: Description and Operation
OBD-II review 1. Overview The California Air Resources Board (CARB) began regulation of On Board Diagnostics (OBD) for vehicles sold in California beginning with the 1988 model year. The first phase, OBD-I, required monitoring of the fuel metering system, Exhaust Gas Recirculation (EGR) sy ...
