Hyundai Elantra: AVN System / AVN Antenna Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Body Electrical System / AVN System / AVN Antenna Components and Components Location

Components

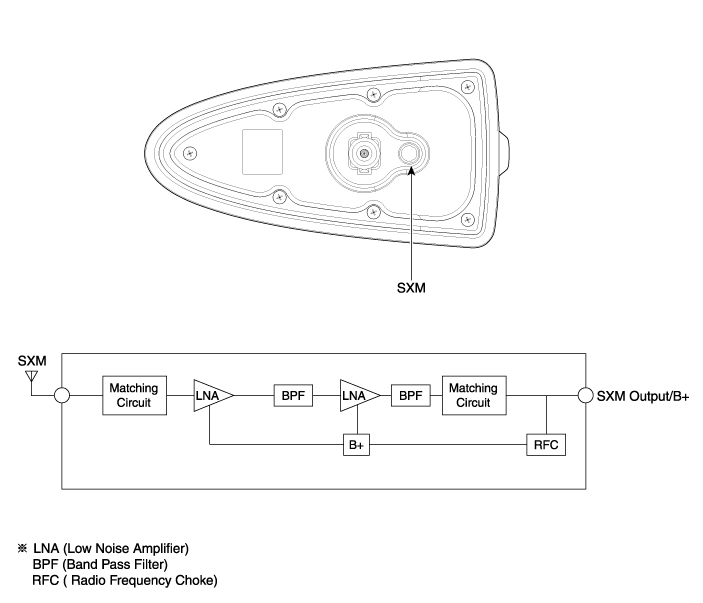

[SXM]

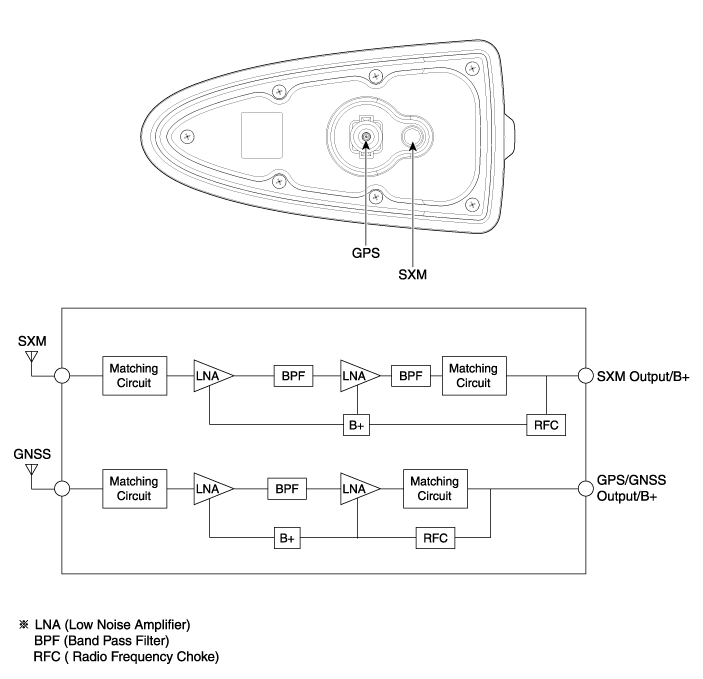

[SXM + GPS]

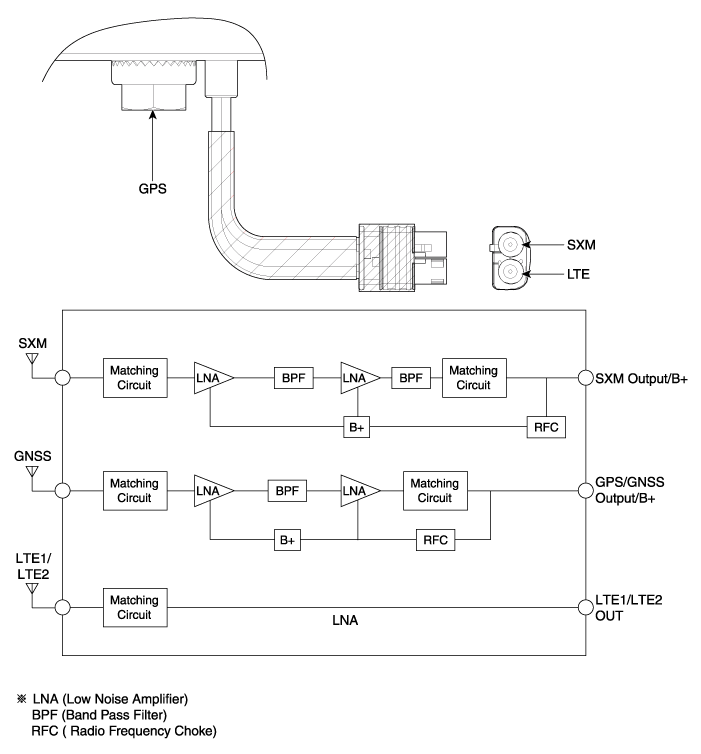

[SXM + GPS + LTE]
