Hyundai Elantra: Audio / Audio Unit Components and Components Location

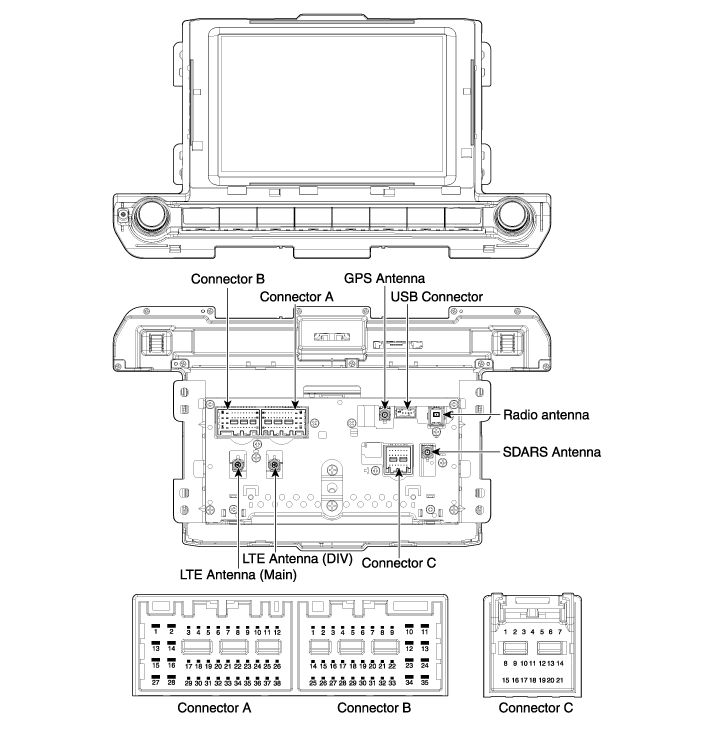

| Components |
| No | Connector A | Connector B | Connector C |
| 1 | Rear left speaker (+) | Can (High) | - |
| 2 | Front left speaker (+) | - | - |
| 3 | Front right speaker (+) | - | Camera GND |
| 4 | Rear right speaker (+) | Steering wheel remote | Camera video input |
| 5 | - | - | - |
| 6 | - | USB D (+) | - |
| 7 | - | USB VDD | - |
| 8 | Illumination (+) | AUX Right input | - |
| 9 | Detent | AUX GND | - |
| 10 | Rear left speaker (-) | Mic (+) (Bluetooth) | Camera power (+) |
| 11 | Front left speaker (-) | ACC | Camera GND (-) |
| 12 | Front right speaker (-) | B+ | - |
| 13 | Rear right speaker (-) | Can (Low) | - |
| 14 | - | - | - |
| 15 | - | - | - |
| 16 | - | Vehicle Speed | - |
| 17 | Illumination (-) | Steering wheel remote GND | |
| 18 | Remote antenna | USB D (-) | |
| 19 | USB GND | ||
| 20 | AUX DETECT | ||
| 21 | AUX Left input | ||
| 22 | Mic (-) (Bluetooth) | ||
| 23 | - | ||
| 24 | GND |
| No | Connector A | Connector B |
| 1 | Rear left speaker (+) | CAN High |
| 2 | Front left speaker (+) | - |
| 3 | Front right speaker (+) | - |
| 4 | Rear right speaker (+) | Steering wheel remote |
| 5 | - | - |
| 6 | - | USB D (+) |
| 7 | - | USB VDD |
| 8 | Illumination (+) | AUX Right input |
| 9 | - | AUX GND |
| 10 | Rear left speaker (-) | Mic (+) (Bluetooth) |
| 11 | Front left speaker (-) | ACC |
| 12 | Front right speaker (-) | B+ |
| 13 | Rear right speaker (-) | CAN Low |
| 14 | - | - |
| 15 | - | - |
| 16 | - | Vehicle Speed |
| 17 | Illumination (-) | Steering wheel remote GND |
| 18 | Remote antenna | USB D (-) |
| 19 | USB GND | |
| 20 | AUX DETECT | |
| 21 | AUX Left input | |
| 22 | Mic (-) (Bluetooth) | |
| 23 | - | |
| 24 | GND |
| No | Connector A | Connector B | Connector C |
| 1 | Rear left speaker (+) | - | Body can (+) |
| 2 | Rear left speaker (-) | Mic (+) B/T | Chassis can(+) |
| 3 | - | - | - |
| 4 | - | - | - |
| 5 | - | Antenna remote | - |
| 6 | Camera power | Illumination (+) | - |
| 7 | Camera video (Y) | MM Can (+) | - |
| 8 | - | - | Body can (-) |
| 9 | - | - | Chassis can (-) |
| 10 | AUX R | Battery (+) | - |
| 11 | AUX Detect | Battery (+) | - |
| 12 | Steering wheel remote | GND | - |
| 13 | Front left speaker (+) | GND | - |
| 14 | Front left speaker (-) | Mic GND | - |
| 15 | Front right speaker (-) | Mic (-) B/T | - |
| 16 | Front right speaker (+) | - | MTS Key input |
| 17 | - | - | - |
| 18 | - | - | - |
| 19 | - | Illumination (-) | - |
| 20 | Camera GND | MM Can (-) | - |
| 21 | Camera video GND Camera video (Y) GND | - | |
| 22 | - | ACC | |
| 23 | - | - | |
| 24 | AUX L | - | |
| 25 | AUX GND | - | |
| 26 | Steering wheel remote GND | - | |
| 27 | Rear right (-) | - | |
| 28 | Rear right (+) | - | |
| 29 | - | - | |
| 30 | - | - | |
| 31 | - | - | |
| 32 | - | - | |
| 33 | - | IGN 1 | |
| 34 | - | - | |
| 35 | - | - | |
| 36 | - | ||
| 37 | - | ||
| 38 | Speed |
Components and Components Location
Component Location
1. Audio unit2. Feeder cable joint connector3. Center speaker4. Glass antenna amplifier5. Front door speaker6. Rear door speaker7. Sub woofer speaker8. Antenna feeder cable9. T ...
Audio Unit Repair procedures
Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the center fascia panal.
(Refer to Body - "Center Fascia Panal")
3.
Remove the audio head unit (A) after loosening the s ...
