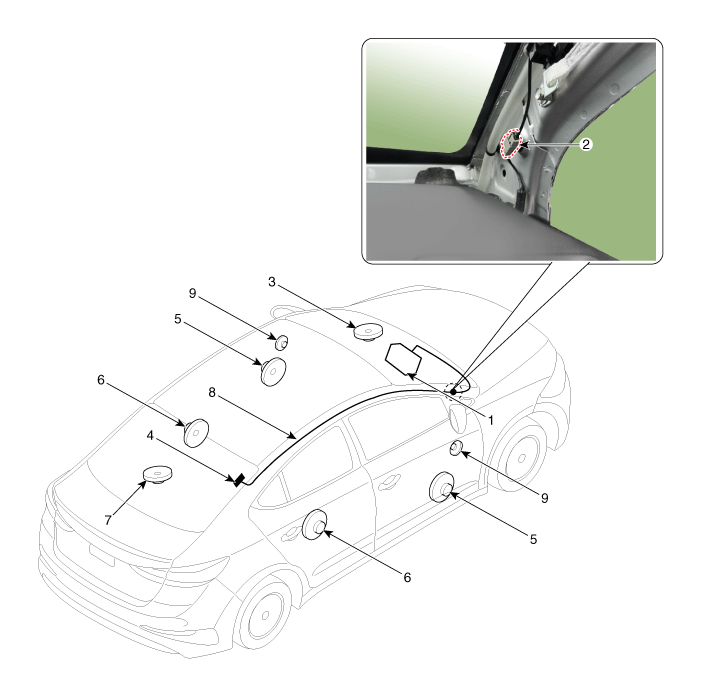

Component Location

1. Audio unit
2. Feeder cable joint connector
3. Center speaker
4. Glass antenna amplifier
5. Front door speaker

6. Rear door speaker
7. Sub woofer speaker
8. Antenna feeder cable
9. Tweeter speaker

Specifications

Specifications Audio ItemsAudioModelTFT/MONO/DISPLAY Power supplyDC 14.4VParasitic currentMax. 1mA (Head unit only)Antenna80PF 75?Tuning typePLL SYNTHESIZED TUNING ...

Audio Unit Components and Components Location

Components [TFT Type] Connector Pin Information NoConnector AConnector BConnector C1Rear left speaker (+)Can (High)- 2Front left speaker (+)-- 3Front right speaker (+)-Camera GND 4 ...
