Hyundai Elantra: Heating and Air Conditioning / Air intake control

Hyundai Elantra. Air intake control

This button is used to select the outside (fresh) air position or recirculated air position.

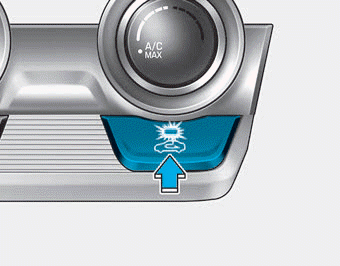

Recirculated air position

Hyundai Elantra. Air intake control

With the recirculated air position selected, air from the passenger compartment will be drawn through the heating system and heated or cooled according to the function selected.

Outside (fresh) air position

Hyundai Elantra. Air intake control

With the outside (fresh) air position selected, air enters the vehicle from outside and is heated or cooled according to the function selected.

Information

Prolonged use of the air conditioning with the recirculated air position selected will result in excessively dry air in the passenger compartment.

WARNING
