Hyundai Elantra: Rear Seats / Armrest

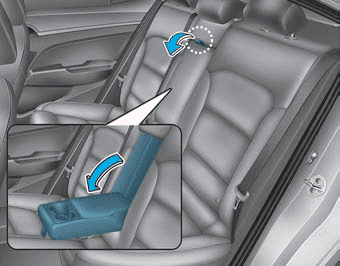

The armrest is located in the center of the rear seat. Pull the armrest down by using the strap from the seatback to use it.
If your car is not equipped with a rear armrest, the rear cup holders are located at the back of the center console.
CAUTION
- Be careful when loading cargo through the rear passenger seats to prevent damage to the vehicle interior.
- When cargo is loaded through the rear passenger seats, ensure the cargo is properly secured to prevent it from moving while driving.
- Unsecured cargo in the passenger compartment can cause damage to the vehicle or injury to it's occupants.
