Hyundai Elantra: If You Have a Flat Tire / With Tire Mobility Kit (TMK, if equipped) - Type A
For safe operation, carefully read and follow the instructions in this manual before use.

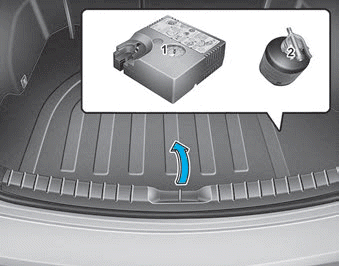

(1) Compressor
(2) Sealant bottle
The Tire Mobility Kit is a temporary fix to the tire and we recommend that the system be inspected by an authorized HYUNDAI dealer.
CAUTION
When two or more tires are flat, do not use the tire mobility kit because the supported one sealant of Tire Mobility Kit is only used for one flat tire.
WARNING
Do not use the Tire Mobility Kit to repair punctures in the tire walls. This can result in an accident due to tire failure.
WARNING
Have your tire repaired as soon as possible. The tire may loose air pressure at any time after inflating with the Tire Mobility Kit.
- Introduction
- Notes on the safe use of the Tire Mobility Kit
- Components of the Tire Mobility Kit
- Using the Tire Mobility Kit
- Distributing the sealant
- Checking the tire inflation pressure
Jack label
The actual Jack label in the vehicle may differ from the illustration.
For more detailed specifications, refer to the label attached to the jack.
1. Model Name
2. Maximum allowable load
3. When ...
Introduction
With the Tire Mobility Kit you stay mobile even after experiencing a tire puncture.
The system of compressor and sealing compound effectively and comfortably seals
most punctures in a passenger car ...
