Hyundai Elantra: With Tire Mobility Kit (TMK, if equipped) - Type A / Distributing the sealant

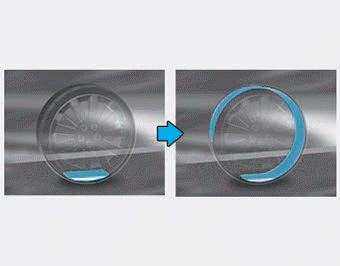

9. Immediately drive approximately 7~10 km (4~6 miles or, about 10min) to evenly distribute the sealant in the tire.
Do not exceed a speed of 80 km/h (50 mph). If possible, do not fall below a speed of 20 km/h (12 mph).
While driving, if you experience any unusual vibration, ride disturbance or noise, reduce your speed and drive with caution until you can safely pull off of the side of the road.
Call for road side service or towing. When you use the Tire Mobility Kit, the tire pressure sensors and wheel may be damaged by sealant, remove the sealant stained with tire pressure sensors and wheel and inspect in authorized dealer.
Using the Tire Mobility Kit
CAUTION
Detach the speed restriction label (1) from the sealant bottle (2), and place
it in a highly visible place inside the vehicle such as on the steering wheel to
remind the driver not to d ...
Checking the tire inflation pressure
1. After driving approximately 7~10 km (4~6 miles or about 10 min), stop at a
safety location.
2. Connect the filling hose (3) directly into the compressor
3. Connect the other end of the fill ...
