Hyundai Elantra: Maintenance / Wiper Blades. Blade Replacement

Hyundai Elantra AD (2016-2020) Owners Manual / Maintenance / Wiper Blades. Blade Replacement

Blade Inspection

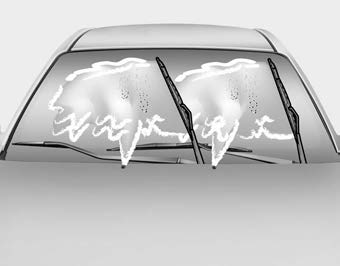

Hyundai Elantra. Wiper Blades

Contamination of either the windshield or the wiper blades with foreign matter can reduce the effectiveness of the windshield wiper functionality. Common sources of contamination are insects, tree sap, and hot wax treatments used by some commercial car washes. If the blades are not wiping properly, clean both the window and the blades with a clean cloth dampened with washer fluid.

NOTICE

To prevent damage to the wiper blades, arms or other components, do not:

Information

Commercial hot waxes applied by automatic car washes have been known to make the windshield difficult to clean.

Blade Replacement

When the wipers no longer clean adequately, the blades may be worn or cracked, and require replacement.

NOTICE

To prevent damage to the wiper arms or other components, do not attempt to move the wipers manually.

NOTICE

The use of a non-specified wiper blade could result in wiper malfunction and failure.

Hyundai Elantra. Blade Replacement

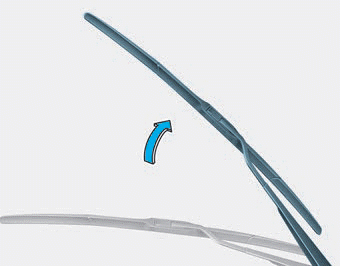

1. Raise the wiper arm.

CAUTION

Do not allow the wiper arm to fall against the windshield, since it may chip or crack the windshield.

Hyundai Elantra. Blade Replacement

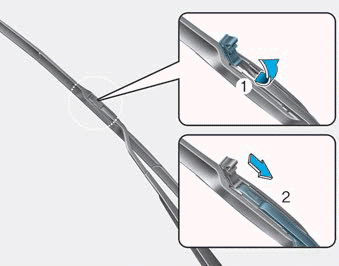

2. Lift up the wiper blade clip. Then pull down the blade assembly and remove it.

Hyundai Elantra. Blade Replacement

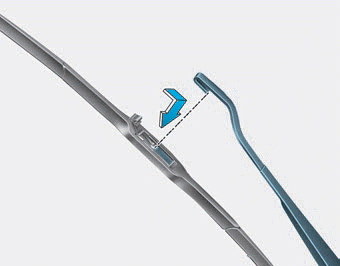

3. Install the new blade assembly in the reverse order of removal.

4. Return the wiper arm on the windshield.

CAUTION

To prevent damage to the wiper arms or other components, have an authorized HYUNDAI dealer replace the wiper blade.
