Hyundai Elantra: Specifications, Consumer Information and Reporting Safety Defects / Volume and Weight, Air Conditioning System

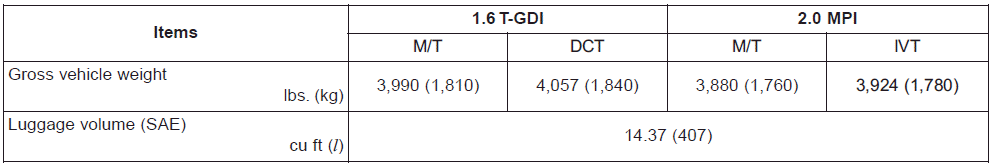

Volume and Weight
M/T : Manual transmission
IVT : Intelligent Variable Transmission
DCT : Dual clutch transmission

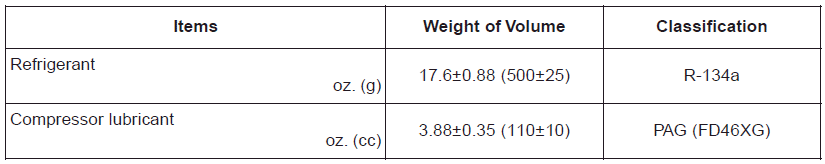

Air Conditioning System
Contact an authorized HYUNDAI dealer for more details.
Tires and Wheels
If your vehicle is not equipped with a compact spare tire, your vehicle will
be equipped with a Tire Mobility Kit.
NOTICE
It is permissible to add 3 psi to the standard tire pressure specific ...
Recommended Lubricants and Capacities
To help achieve proper engine and powertrain performance and durability, use
only lubricants of the proper quality. The correct lubricants also help promote
engine efficiency that results in impro ...
