Hyundai Elantra: Specifications, Consumer Information and Reporting Safety Defects / Tires and Wheels

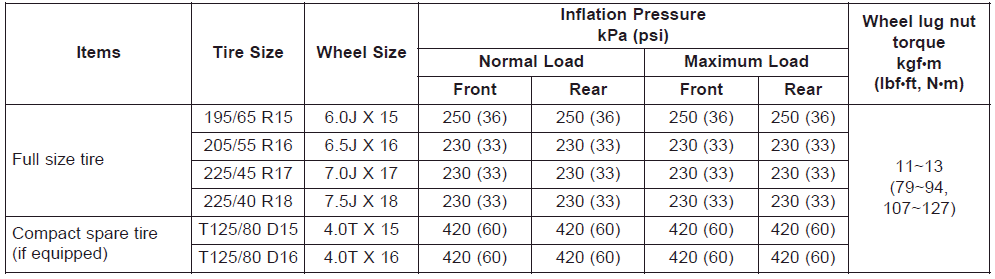

Hyundai Elantra. Tires and Wheels

If your vehicle is not equipped with a compact spare tire, your vehicle will be equipped with a Tire Mobility Kit.

NOTICE

CAUTION

When replacing tires, use the same size originally supplied with the vehicle. Using tires of a different size can damage the related parts or not work properly.
